平鍵 UNI 6604 - 1969

查看供應商

選擇規格尺寸點擊↓

100

尺寸單位: mm

模型下載

掃一掃分享

單重計算公差

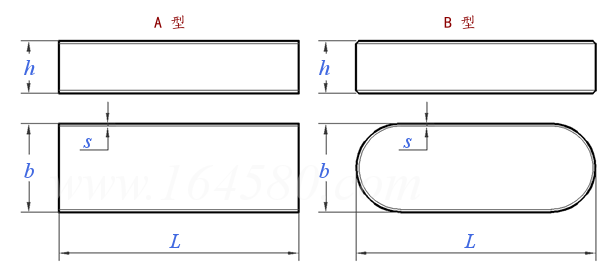

規格

b	最大值=公稱 (h9)
b	最小值
h	最大值
h	最小值
s	最大值
s	最小值
使用在	軸直徑

2	3	4	5	6	8	10	12	14	16	18	20	22
1.975	2.975	3.97	4.97	5.97	7.964	9.964	11.957	13.957	15.957	17.957	19.948	21.948
2	3	4	5	6	7	8	8	9	10	11	12	14
1.975	2.975	3.97	4.97	5.97	6.91	7.91	7.91	8.91	9.91	10.89	11.89	13.89
0.25	0.25	0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.6	0.6	0.8	0.8
0.16	0.16	0.16	0.25	0.25	0.25	0.4	0.4	0.4	0.4	0.4	0.6	0.6
6≤d≤8	8<d≤10	10<d≤12	12<d≤17	17<d≤22	22<d≤30	30<d≤38	38<d≤44	44<d≤50	50<d≤58	58<d≤65	65<d≤75	75<d≤85

規格

100

b	最大值=公稱 (h9)
b	最小值
h	最大值
h	最小值
s	最大值
s	最小值
使用在	軸直徑

25	28	32	36	40	45	50	56	63	70	80	90	100
24.948	27.948	31.938	35.938	39.938	44.938	49.938	55.926	62.926	69.926	79.926	89.913	99.913
14	16	18	20	22	25	28	32	32	36	40	45	50
13.89	15.89	17.89	19.87	21.87	24.87	27.87	31.84	31.84	35.84	39.84	44.84	49.84
0.8	0.8	0.8	1.2	1.2	1.2	1.2	2	2	2	3	3	3
0.6	0.6	0.6	1	1	1	1	1.6	1.6	1.6	2.5	2.5	2.5
85<d≤95	95<d≤110	110<d≤130	130<d≤150	150<d≤170	170<d≤200	200<d≤230	230<d≤260	260<d≤290	290<d≤330	330<d≤380	380<d≤440	440<d≤500

引用參考

GB /T 3098.25 - 2020

緊固件機械性能不銹鋼和鎳合金緊固件選用指南

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍鎘、復合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

注：技術數據僅供參考，請以官方原件為準！
