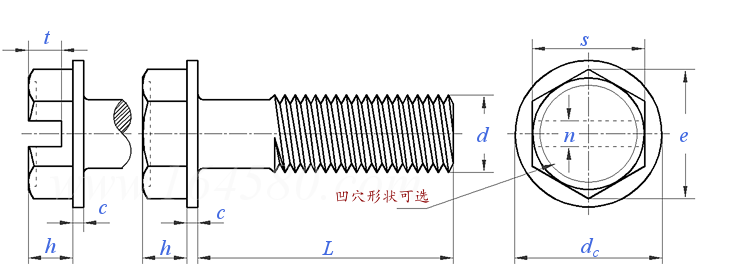

開槽和無槽六角凸緣頭（墊圈頭）螺釘 [Table 32] (ASTM F837, F468) ASME B 18.6.3 (T32) - 2013
| 選擇規格尺寸 點擊↓ 2# 3# 4# 5# 6# 8# 10# 12# 1/4 5/16 3/8 7/16 1/2 |
尺寸單位:
inch |
|
![美標ASME B18.6.3 (T32) - 2013 ASME18.6.3 1 開槽和無槽六角凸緣頭（墊圈頭）螺釘 [Table 32] (ASTM F837, F468)](https://imgccc.164580.com/upload/48/pic/2023/11/17/1700200986685979827.jpg)
![美標ASME B18.6.3 (T32) - 2013 ASME18.6.3 1 開槽和無槽六角凸緣頭（墊圈頭）螺釘 [Table 32] (ASTM F837, F468)](https://imgccc.164580.com/upload/48/pic/2023/11/17/1700201088233464801.jpg)
![ASME B 18.6.3 (T32) - 2013 開槽和無槽六角凸緣頭（墊圈頭）螺釘 [Table 32] (ASTM F837, F468)](https://img.164580.com/upload/48/qrcode_standardurl/5003.png)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,其他凹槽型式請點擊標題下方的“采用標準” ②,除非用戶有要求，六角頭凸緣螺釘不需要開槽。 ③,六角面與凸緣頂面結合處的圓角半徑R應不大于螺釘公稱直徑的0.15倍。 ④,可選擇凹穴型式。 ⑤,螺桿直徑ds應不小于2A級螺紋最小中徑，并不大于公稱（基本）螺紋大徑。 ⑥,機械螺釘的螺紋長度： 1）螺紋規格≤5#: 公稱長度≤3倍公稱直徑的應為滿扣產品，頭下螺紋肩距≤1倍螺距。 公稱長度＞3倍公稱直徑到 1-1/8 in 的，允許頭下肩距最大不超過2倍螺距。 若無其他規定，長螺釘的最小螺紋長度為1 in 。 2）螺紋規格≥6#: 公稱長度≤3倍公稱直徑的應為滿扣產品，頭下螺紋肩距≤1倍螺距。 公稱長度＞3倍公稱直徑到 2 in 的，允許頭下螺紋肩距最大不超過2倍螺距。 若無其他規定，長螺釘最小螺紋長度為 1.5 in 。 |
同版本產品組
采用標準
自攻螺紋：
| 1 |
![AB型和ABR型自攻螺紋和末端 [Table 40]](http://img.164580.com/upload/48/standard/2018/09/28/1538121933855296516.jpg)
|
[美標] ASME/ANSI B 18.6.3 (T40) - 2013 |
AB型和ABR型自攻螺紋和末端 [Table 40] Dimensions of Threads and Points for Type AB and Type ABR Thread-forming Screws |
| 2 |
![B型 BP型自攻螺釘螺紋和末端 [Table 41]](http://img.164580.com/upload/48/standard/2018/09/29/1538186661945324758.jpg)
|
[美標] ASME/ANSI B 18.6.3 (T41) - 2013 |
B型 BP型自攻螺釘螺紋和末端 [Table 41] Dimensions of Threads and Points for Type B and BP Thread-Forming Tapping Screws |
| 3 |
![A型自攻螺釘螺紋和末端 [Table 42]](http://img.164580.com/upload/48/standard/2018/09/29/1538199242541614227.jpg)
|
[美標] ASME/ANSI B 18.6.3 (T42) - 2013 |
A型自攻螺釘螺紋和末端 [Table 42] Dimensions of Threads and Points for Type A Thread-Forming Tapping Screws |
| 4 |
![BF型 BT型 自切自攻螺釘螺紋和末端 [Table 43]](http://img.164580.com/upload/48/standard/2018/09/29/1538208543197073992.jpg)
|
[美標] ASME/ANSI B 18.6.3 (T43) - 2013 |
BF型 BT型 自切自攻螺釘螺紋和末端 [Table 43] Dimensions of Threads and Points for Types BF and BT Thread-Cutting Tapping Screws |
| 5 |
![D, F, G, T 型自攻螺釘 螺紋和末端 [Table 44]](http://img.164580.com/upload/48/standard/2018/09/30/1538274982710145766.jpg)
|
[美標] ASME/ANSI B 18.6.3 (T44) - 2013 |
D, F, G, T 型自攻螺釘 螺紋和末端 [Table 44] Dimensions of Threads and Points for Type D, F, G, and T Thread-Cutting Tapping Screws |
| 6 |
![自擠自攻 TRS型 螺紋和末端 [Table 45]](http://img.164580.com/upload/48/standard/2018/10/08/1538974825207969765.jpg)
|
[美標] ASME/ANSI B 18.6.3 (T45) - 2013 |
自擠自攻 TRS型 螺紋和末端 [Table 45] Dimensions of Type TRS Tapping Screws |
